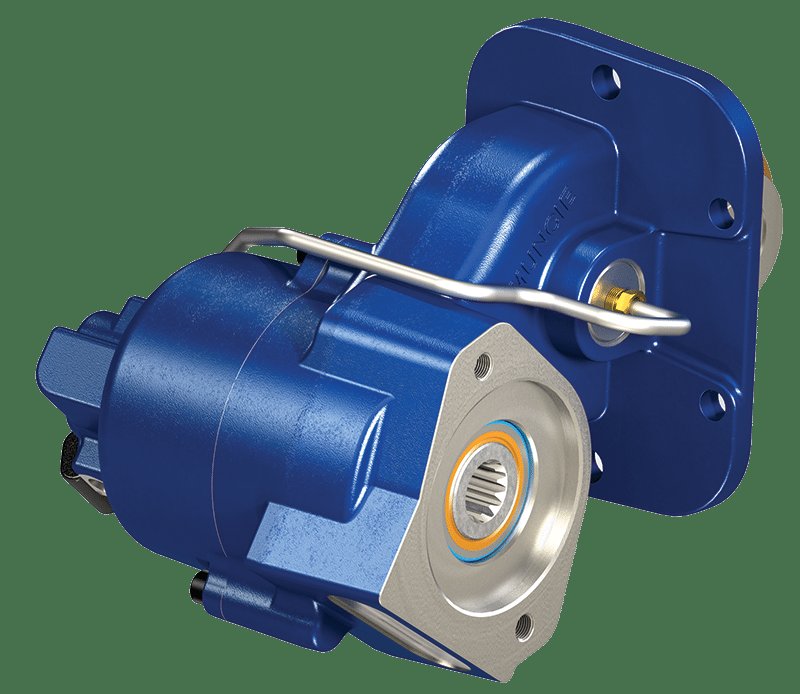

Muncie FR66 PTO
Today's diesel engines don't make it easy for the installation of clutch pumps and mounting kits! Solution: Muncie's FR66 PTO Series Power Take-Off The 2011 Ford Super Duty, equipped with a 6R140 Automatic Transmission and the Muncie FR66 Series PTO can transmit live power to your hydraulic system.
The FR66 can deliver up to 200 lb. ft. of torque for stationary applications and mobile applications are possible with up to 120 lb. ft. of torque. Say goodbye to low power ratings, replacement belts, and difficult clutch pump installations.
Muncie's FR66 Series PTO provides maximum torque capacity with a surprisingly simple installation. Muncie Power carries the widest range of auxiliary power for the Ford. If the TorqShift automatic is your choice, only the FR series PTO can provide up to 190 Ft-Lbs of output torque.
Key features and benefits
- Solenoid activated clutch shift: Positive, no "gear clash" engagement
- Helical gearing throughout (FA): Quiet operation
- Pre-configured wiring harness: Easy, plug-in installation
- Remote and direct mount models: Versatile pump mounting
Common applications
- Cranes
- Dump Trucks
- Wreckers
- Snow Plows
- Aerial Bucket Trucks
- Lift Gate
- Hydraulic Tools
- Bale Spikes
- Tilt Back Car Carriers
Specifications
| Muncie CS41 PTO Series | |
|---|---|
| Housing Construction | Ductile Iron |
| Pump Flows @ 1200RPM | 2.4 - 13.3 GPM |
| Standard Output Shaft | 1 - 1/4" diameter |
| PTO Output Shaft (direct mount) | 3/4" - 11 Spline |
| Rotatable Pump Flange | Standard |
| Approximate Weight | 28 lbs. (12.7 Kg.) |
| Max Torque | |
| Intermittent | 200 lbs.ft. (271 Nm) |
| Continuous | 140 lbs.ft. (190 Nm) |
| MAX HP (@ 1,000 RPM) | |
| Intermittent | 39 HP (29 kW) |
| Continuous | 22 HP (16 kW) |
Muncie FR66 manuals and brochures
Free PDF downloads of the Muncie literature for this series.
560 KBPDFMuncie FR66 Series PTO Parts Breakdown
3.6 MBPDFMuncie FR66 Series PTO Installation Manual
762 KB
Buy Muncie FR66 PTO parts online
Our online store at pgttruckparts.com carries Muncie power take-offs, rebuild kits, seal kits, shifters and the individual parts, priced and ready to order:
- Muncie FR66 series interactive parts list: every callout on the exploded view is a part you can price and order
- All Muncie PTO parts
- All Muncie PTO units
Need a Muncie PTO or a part for one?
Give us the model number from the PTO tag, or the part number or item number from the manual. We will price it and tell you when it can ship.
