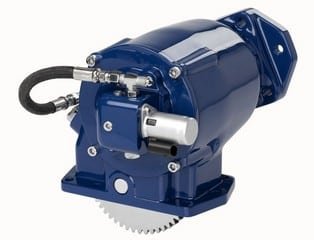

Muncie CS24 / CS25 PTO
The Muncie CS24 and CS25 are clutch shift PTOs with a ductile iron housing and Muncie's drag brake as standard. They carry the same ratings as the CS20: up to 325 lb.ft. intermittent and 228 lb.ft. continuous torque, 7 speed ratios and 12 output shaft options. The difference is the shift: the CS24 is engaged by a drop-in, direct activation solenoid, and the CS25 by a remote activation solenoid.
Key features and benefits
- Four remote mount output shafts in both keyed and flange types: Versatility for remote pump drives
- S.A.E. "A", "B", "BB", and DIN 5462 direct mount pump options: Fits most popular pumps
- Rotatable direct mount flanges: Allows pump to be positioned for maximum clearance
- Compatible with PTO Shaft Extensions for Allison transmissions: Moves the pump mount to the rear of the transmission for large pump clearance
- Patented Muncie drag brake: Prevents shaft rotation in "OFF" mode
- Standard pressure lubrication: No extra cost
- Two assembly arrangements: Allows the PTO to be mounted shaft high or low on either side of the transmission
Common applications
- Refuse Vehicles
- Tank Trucks
- Ice and Snow Control Trucks
- Digger Derricks
- Aerial Bucket Trucks
- Dump Bodies
Specifications
| Muncie CS24 CS25 PTO Series Specifications | |
|---|---|
| Housing Construction | Ductile Iron |
| Speed Ratios | 7 |
| Drag Brake | Standard |
| Output Shaft Options | 12 |
| Rotatable Pump Flange | Standard |
| Assembly Arrangements | 2 |
| Approximate Weight | 52 lbs. (23.6 Kg.) |
| Max Torque | |
| Intermittent | 325 lbs.ft. (440 Nm) |
| Continuous | 228 lbs.ft. (308 Nm) |
| MAX HP (@ 1,000 RPM) | |
| Intermittent | 62 HP (46.2 kW) |
| Continuous | 43 HP (32 kW) |
Muncie CS24 CS25 manuals and brochures
Free PDF downloads of the Muncie literature for this series.
1.5 MBPDFMuncie CS24 / CS25 Series Parts Breakdown
4.3 MBPDFMuncie CS24 / CS25 Series Installation and Owner's Manual
6.8 MB
Buy Muncie CS24 CS25 PTO parts online
Our online store at pgttruckparts.com carries Muncie power take-offs, rebuild kits, seal kits, shifters and the individual parts, priced and ready to order:
Need a Muncie PTO or a part for one?
Give us the model number from the PTO tag, or the part number or item number from the manual. We will price it and tell you when it can ship.
