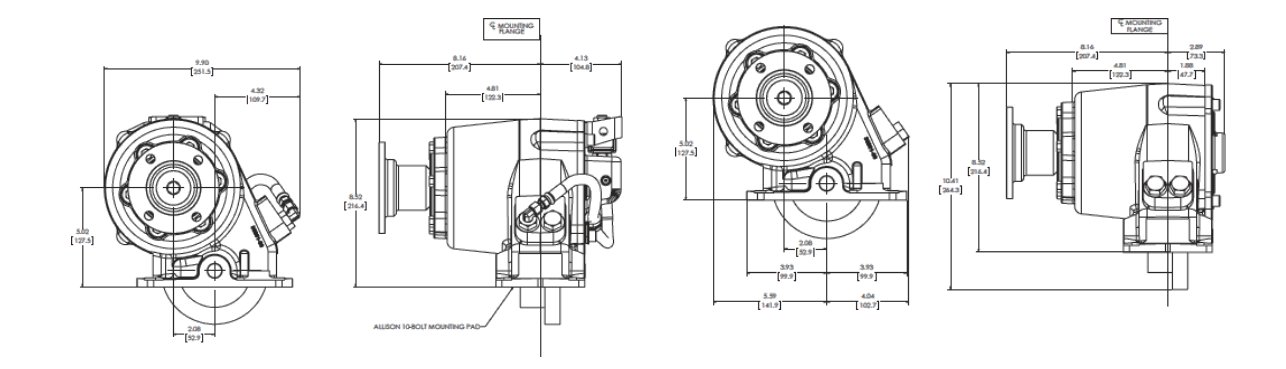

Muncie CS10 CS11 PTO
The CS10 is rated to 500 lb.ft. torque and 95 H.P. @ 1000 RPM.
Key features and benefits
- Three remote mount output shafts in both keyed and flange types: Versatility for remote pump drives
- S.A.E. "B", "BB", and "C"; DIN 5462 direct mount pump options: Fits most popular pumps
- Rotatable direct mount flanges: Allows pump to be positioned for maximum clearance
- Patented Muncie drag brake: Prevents shaft rotation in "OFF" mode
- Standard pressure lubrication: No extra cost
- Two assembly arrangements: Allows the PTO to be mounted shaft high or low on either side of the transmission
Common applications
- Refuse Vehicles
- Lube Trucks
- Digger Derricks
- Cranes
Specifications
| Muncie CS10 - CS11 Series Specifications | |
|---|---|
| Housing Construction | Ductile Iron |
| Speed Ratios | 5 |
| Drag Brake | Standard |
| Output Shaft Options | 10 |
| Rotatable Pump Flange | Standard |
| Assembly Arrangements | 2 |
| Approximate Weight | 68 lbs. (30.9 Kg.) |
| Max Torque | |
| Intermittent | 500 lbs.ft. (648 Nm) |
| Continuous | 350 lbs.ft. (475 Nm) |
| MAX HP (@ 1,000 RPM) | |
| Intermittent | 95 HP (71 kW) |
| Continuous | 67 HP (50 kW) |
Muncie CS10 CS11 manuals and brochures
Free PDF downloads of the Muncie literature for this series.
PDFMuncie CS10 / CS11 Series Brochure
1.5 MBPDFMuncie CS10 / CS11 Series Parts Breakdown
5.1 MBPDFMuncie CS10 / CS11 Series Installation Manual
6.8 MB
1.5 MBPDFMuncie CS10 / CS11 Series Parts Breakdown
5.1 MBPDFMuncie CS10 / CS11 Series Installation Manual
6.8 MB
