Muncie CS6 / CS8 PTO

Muncie CS6 CS8 PTODescription:
The CS6 and CS8 series are Clutch Shift PTO’s designed to work great on Allison 1000 & 2000 series automatics and many current manual transmissions. Like all of Muncie’sClutch Shiftline of PTOs, the CS6/8 offers popular direct mount pump options as well as Muncie’s patented shaft brake, a standard feature. An upgraded multi-disk clutch brake can be used where absolute shaft stoppage is required.

A recent option is the gear reducer box (CSGB200-125) which reduces the output shaft speed by 50%, making it an ideal option for low speed applications.

Clutch Shift PTOs used in conjunction with the SPD-1000A, System Protection Device, can greatly reduce expensive transmission and equipment repairs caused by exceeding operational limits. In addition, operating restrictions can be implemented to ensure the safety of the equipment operator and bystanders.

Kung ikaw ay may mga katanungan o kailangan ng tulong sa pagtukoy ng iyong PTO o bahagi, makipag-ugnay sa amin ngayon, o tumawag sa amin mula Lunes hanggang Biyernes 8 AM para 5 PM EST sa 877-766-4600 or 407-872-1901. We offer same day, buong mundo pagpapadala. Bisitahin ang aming PTO parts web store to view our inventory.

Mga nilalaman / Mga benepisyo:

  • 23 transmission input gears: Fits most popular automatic and manual transmissions
  • Three remote mount output shafts in keyed and flange types: Versatility for remote pump drives
  • S.A.E. “A”, “B”, and “BB”; DIN 5462 direct mount pump options: Fits most popular pumps
  • Rotatable direktang bundok tile: Tinutulutan ng bomba para iposisyon para sa maximum na clearance
  • Patented Muncie drag brake: Prevents shaft rotation inOFFmode
  • Optional pulse generator: Lets System Protection Device monitor PTO shaft speed

Karaniwang application:

  • Refuse Equipment

  • Lube Trucks

  • Digger Derricks

  • Aerial Bucket Trucks

  • Ice And Snow Control Trucks

Muncie CS6 / CS8 BrochureMuncie CS6 / CS8 Series Brochure

Muncie CS6 / CS8 Series Parts BreakdownMuncie CS6 / CS8 Series Parts Breakdown

Muncie CS6 / CS8 Owner's ManualMuncie CS6 / CS8 Series Owner’s Manual

Muncie CS6 / CS8 Installation ManualMuncie CS6 / CS8 PTO Installation Manual

Muncie CS6 Series

Muncie CS8 Series

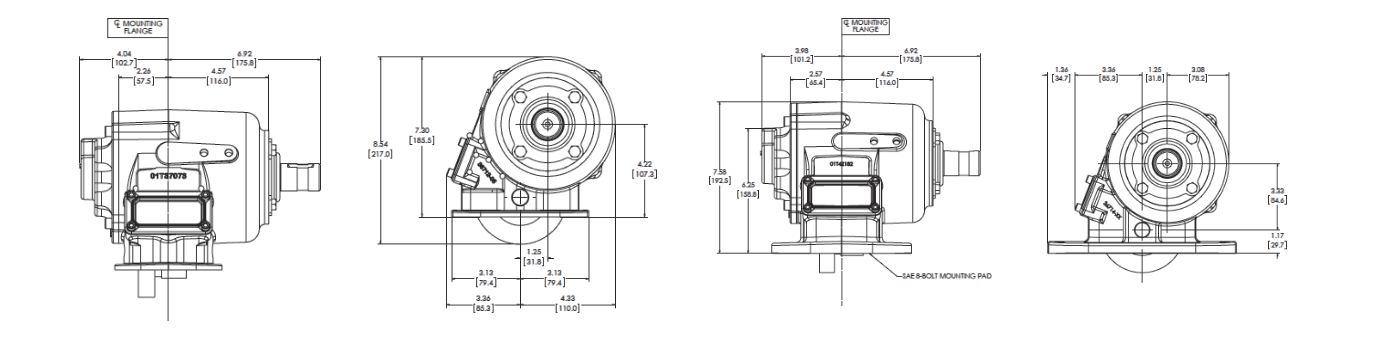

Muncie CS6 CS8 dimensional drawing

Dimensional Drawings

Muncie CS6 / CS8 PTO Series Specifications
Pabahay konstruksiyonMalagkit na bakal
Ratio ng bilis7
Mga opsiyon sa baras ng output12
Rotatable bomba patigasinPamantayan
Ang mga detalye ng Assembly4
Drag BrakePamantayan
Tinatayang bigat47 lbs. (21.3 Kg.)
Max metalikang kuwintas
Hinto300 lbs.ft. (407 NM)
Tuloy-tuloy210 lbs.ft. (285 NM)
MAX HP (@ 1,000 RPM)
Hinto57 HP (43 kW)
Tuloy-tuloy40 HP (30 kW)
